壓力范圍廣，最大可達50MPa。
專業密封技術，適用于適用于真空和雙向壓力以及獨立的流道。
可同時傳輸不同類型的介質，如傳輸壓縮空氣,真空,液壓油,水,熱水,冷卻液,蒸汽等介質。
接口尺寸: M5,G1/8,G1/4,G3/8,G1/2
MGP是最通用多功能旋轉接頭，規格型號多，適用于90%的應用場合。
| 產品等級選型表 | |||
| 產品等級代號 | 最高轉速 | 工作壽命 | 密封件 |
| VC | 100RPM | 600萬轉 | 國內知名品牌密封件 |
| VD | 300RPM | 2000萬轉 | 進口密封件 |
| 技術規格參數 | |||
| 機械技術指標 | 旋轉接頭部分技術指標 | ||
| 參數 | 數值 | 參數 | 數值 |
| 工作壽命 | 參考產品選型等級 | 通道數 | 2,3,4,6,8通道 |
| 額定轉速 | 參考產品選型等級 | 最大壓力 | 50MPa (可定制高壓)，真空 30HG |
| 工作溫度 | -30℃~80℃ | 可過介質 | 空氣,真空,液壓油,水,熱水,冷卻液,蒸汽等 |
| 工作濕度 | 0~85% RH | 扭矩 | 與接口尺寸相關,詳見選型表 |
| 密封件 | 參考產品選型等級 | ||
| 殼體材料 | 鋁合金/鋼 | ||
| 防護等級 | IP51 | ||
| MGP4 系列流體電滑環選型表 | |||||||||
| 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 | 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 |
| MGP41 | 4進4出 | G1/8" | N/A | 0-50MPa | MGP43-ID19 | 4進4出 | G3/8" | 19mm | 0-50MPa |
| MGP41-ID12 | 4進4出 | G1/8“ | 12mm | 0-50MPa | MGP44 | 4進4出 | G1/2“ | N/A | 0-50MPa |
| MGP42 | 4進4出 | G1/4" | N/A | 0-50MPa | MGP44-ID19 | 4進4出 | G1/2“ | 19mm | 0-50MPa |
| MGP42-ID19 | 4進4出 | G1/4" | 19mm | 0-50MPa | MGP46 | 4進4出 | G3/4" | N/A | 0-50MPa |
| MGP43 | 4進4出 | G3/8" | N/A | 0-50MPa | MGP47 | 4進4出 | G7/8" | N/A | 0-50MPa |

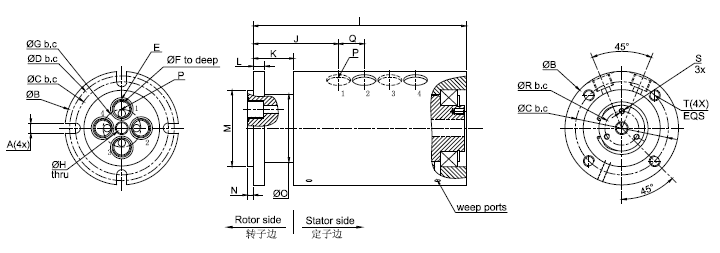

| 尺碼參照表 | |||||
| Size | MGP41 | MGP41-ID12 | MGP42 | MGP42-ID19 | MGP43 |
| A | 7.14mm | 7.14mm | 7.14mm | 9.0mm | 9.0mm |
| B | 68.28mm | 74.60mm | 80.95mm | 95.25mm | 98.43mm |
| C | 53.98mm | 60.33mm | 69.85mm | 82.55mm | 82.55mm |
| D | 63.50mm | 69.85mm | 74.60mm | 87.3mm | 90.47mm |
| E | 2-015 O-Ring [14.00mm] | 2-015 O-Ring [14.00mm] | 2-017 O-Ring [17.17mm] | 2-017 O-Ring [17.17mm] | 2-019 O-Ring [20.35mm] |
| F | 4.0mm | 4.0mm | 6.4mm | 6.4mm | 9.5mm |
| G | 26.97mm | 33.32mm | 34.93mm | 44.45mm | 38.10mm |
| H | N/A | 12.7mm | N/A | 19.05mm | N/A |
| I | 119.3mm | 120.3mm | 155.4mm | 160.7mm | 177.3mm |
| J | 50.6mm | 51.6mm | 58.4mm | 63.6mm | 66.8mm |
| K | 25.4mm | 25.4mm | 25.4mm | 28.5mm | 30.1mm |
| L | 6.35mm | 6.35mm | 6.35mm | 7.92mm | 7.92mm |
| M | 47.63mm | 55.55mm | 60.33mm | 69.85mm | 66.68mm |
| N | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 3.18mm |
| O | 44.5mm | 46.0mm | 55.9mm | 63.5mm | 65.4mm |
| P | G1/8" | G1/8" | G1/4" | G1/4" | G3/8" |
| Q | 14mm | 14mm | 21.03mm | 21.03mm | 24.13mm |
| R | N/A | 18.5mm | N/A | 34.90mm | N/A |
| S | N/A | M3*0.5 | N/A | M5*0.8 | N/A |
| T | M6*1.0 | M6*1.0 | M6*1.0 | M8*1.25 | M8*1.25 |
| 尺碼參照表 | |||||
| Size | MGP43-ID19 | MGP44 | MGP44-ID19 | MGP46 | MGP47 |
| A | 9.0mm | 9.0mm | 9.0mm | 11.00mm | 13.49mm |
| B | 106.35mm | 107.95mm | 125.4mm | 131.75mm | 182.55mm |
| C | 92.08mm | 92.08mm | 104.78mm | 114.30mm | 146.05mm |
| D | 98.43mm | 100.00mm | 117.48mm | 122.22mm | 165.10mm |
| E | 2-019 O-Ring [20.35mm] | 2-023 O-Ring [26.70mm] | 2-023 O-Ring [26.70mm] | 2-026 O-Ring [31.47mm] | 2-028 O-Ring [37.77mm] |
| F | 9.5mm | 12.7mm | 12.7mm | 19.05mm | 25.40mm |
| G | 47.63mm | 44.5mm | 57.15mm | 53.98mm | 76.2mm |
| H | 19.05 | N/A | 19.05mm | N/A | 25.4mm |
| I | 187.2mm | 209.5mm | 218.2mm | 247.1mm | 268.4mm |
| J | 67.2mm | 75.5mm | 81.5mm | 86.1mm | 115.1mm |
| K | 28.5mm | 34.9mm | 42.8mm | 38.1mm | 57.2mm |
| L | 7.92mm | 9.53mm | 11.10mm | 11.10mm | 15.88mm |
| M | 76.2mm | 79.385mm | 92.1mm | 95.25mm | 117.48mm |
| N | 3.18mm | 4.75mm | 4.75mm | 4.75mm | 4.75mm |
| O | 72.1mm | 74.2mm | 88.9mm | 87.6mm | 133.4mm |
| P | G3/8" | G1/2" | G1/2" | G3/4" | G1" |
| Q | 26.16mm | 30.12mm | 30.12mm | 36.93mm | 45.57mm |
| R | 34.90mm | N/A | 34.90mm | N/A | 34.90mm |
| S | M5*0.8 | N/A | M5*0.8 | N/A | M5*0.8 |
| T | M8*1.25 | M8*1.25 | M8*1.25 | M8*1.25 | M12*1.75 |
|
基于本型號進行定制
如何進行特殊要求訂購?
定制型號說明:

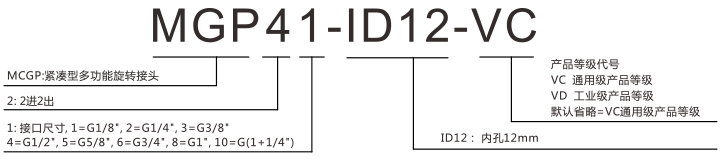

MGP4
