選型表
| MGP2 系列流體電滑環選型表 |
| 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 | 型號 | 通道數 | 接口尺寸 | 內孔尺寸 | 壓力范圍 |
| MGP21 | 2進2出 | G1/8" | N/A | 0-50MPa | MGP23-ID19 | 2進2出 | G3/8" | 19mm | 0-50MPa |
| MGP21-ID12 | 2進2出 | G1/8“ | 12mm | 0-50MPa | MGP24 | 2進2出 | G1/2“ | N/A | 0-50MPa |
| MGP22 | 2進2出 | G1/4" | N/A | 0-50MPa | MGP24-ID19 | 2進2出 | G1/2“ | 19mm | 0-50MPa |
| MGP22-ID19 | 2進2出 | G1/4" | 19mm | 0-50MPa | MGP25-ID25 | 2進2出 | G5/8" | 25mm | 0-50MPa |
| MGP23 | 2進2出 | G3/8" | N/A | 0-50MPa | | | | | |

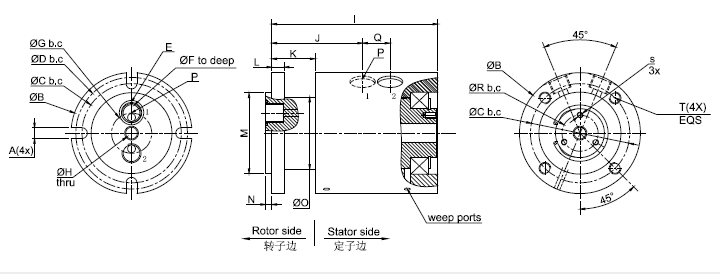

標準圖紙
標準圖紙
| 尺碼參照表 |
| Size | MGP21 | MGP21-ID12 | MGP22 | MGP22-ID19 | MGP23 | MGP23-ID19 | MGP24 | MGP24-ID19 | MGP25-ID25 |
| A | 5.5mm | 7.14mm | 7.14mm | 9.0mm | 7.14mm | 9.0mm | 9.0mm | 9.0mm | 13.49mm |
| B | 61.9mm | 74.6mm | 74.6mm | 95.25mm | 80.95mm | 106.35mm | 98.43mm | 125.4mm | 182.55mm |
| C | 57.15mm | 69.85mm | 17.17mm | 87.3mm | 74.6mm | 98.43mm | 88.90mm | 117.48mm | 171.45mm |
| D | 2-014
O-Ring
[12.42mm] | 2-015
O-Ring
[12.44mm] | 2-017
O-Ring
[17.17mm] | 2-017
O-Ring
[17.17mm] | 2-019
O-Ring
[20.35mm] | 2-019
O-Ring
[20.35mm] | 2-023
O-Ring
[26.70mm] | 2-023
O-Ring
[26.70mm] | 2-028
O-Ring
[37.77mm] |
| F | 4.0mm | 4.0mm | 6.4mm | 6.4mm | 9.5mm | 9.5mm | 12.7mm | 12.7mm | 25.40mm |
| G | 20.62mm | 33.32mm | 25.4mm | 44.45mm | 30.15mm | 47.63mm | 36.5mm | 57.15mm | 76.2mm |
| H | N/A | 12.7mm | N/A | 19.05mm | N/A | 19.05mm | N/A | 19.05mm | 25.4mm |
| I | 85mm | 92.4mm | 111.1mm | 121.2mm | 119.5mm | 134.9mm | 137.0mm | 156.4mm | 218.4mm |
| J | 46.5mm | 51.6mm | 57.5mm | 63.6mm | 60.0mm | 67.2mm | 68.7mm | 79.9mm | 111.1mm |
| K | 22.2mm | 25.4mm | 25.4mm | 28.5mm | 25.4mm | 28.5mm | 30.1mm | 41.3mm | 41.3mm |
| L | 6.35mm | 6.35mm | 6.35mm | 7.92mm | 6.35mm | 7.92mm | 7.92mm | 9.53mm | 15.90mm |
| M | 41.25mm | 55.55mm | 50.8mm | 69.85mm | 60.33mm | 76.2mm | 69.85mm | 92.1mm | 127.00mm |
| N | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 3.18mm | 4.75mm | 4.75mm |
| O | 39.0mm | 45.97mm | 49.27mm | 63.5mm | 57.15mm | 72.15mm | 65.53mm | 88.9mm | 133.35mm |
| P | G1/8" | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G1/2" | G1" |
| Q | 14mm | 14mm | 21.03mm | 21.03mm | 24.13mm | 26.16mm | 28.1mm | 30.12mm | 45.57mm |
| R | N/A | 18.5mm | N/A | 34.90mm | N/A | 34.90mm | N/A | 34.90mm | 34.90mm |
| S | N/A | M3*0.5 | N/A | M5*0.8 | N/A | M5*0.8 | N/A | M5*0.8 | M5*0.8 |
| T | M5 | M6*1.0 | M6*1.0 | M8*1.25 | M6*1.0 | M8*1.25 | M8*1.25 | M8*1.25 | M12*1.75 |
- 注：以下特別要求均可定制，交期會增加3~15天不等，費用增加5%~50%不等，本公司大部分基礎配件都有標準化，模塊化，非標定制也可大大減少成本和交期。
- ① 接頭大小。
- ② 壓力大小。
- ③ 轉速高低。
- ④ 中空內孔大小。
- ⑤ 腐蝕性介質，全不銹鋼材質，防爆，高溫。
|
基于本型號進行定制
默孚龍電子有限公司是國內最早從事滑環技術研究，生產的公司之一, 對各個行業定制滑環經驗豐富，擁有超過10000種滑環方案圖紙數據庫。
如何進行特殊要求訂購?

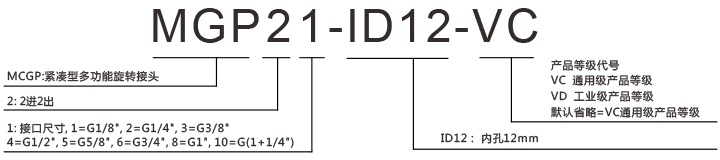

定制型號說明:
MGP2
例子:
- 如果您需要訂購 MGP2 ,支持65路*信號,訂購型號為MGP2-S65.
- 如果您需要訂購 MGP2 ,支持12路*信號 + 3路*10A,,訂購型號為 MGP2-P0310-S12
其他特殊要求:
如果您還有其他特殊要求，請聯系我們。比如：長度限制，高度限制，其他尺寸限制，出線方式，導線長度，定制接頭，高溫，大電流，軍工級別等: [email protected].
